Pictures of oak stairs: Traditional Oak stairs with painted risers, double bullnose oak stair tread and victorian oak staircase handrail style

Oak stairs with oak handrails, painted risers, stringers and painted wood balusters - Pictures of stairs by Finishing Touches - 2 staircase pictures for this homes interior

This home shows the use of two different stair stringer configurations for the main and basement stairs. It show the use of a double bullnose tread on the main stair and uses a straight oak railing termination rather then a volute over the oak bullnose tread. The inside stringer in each picture illustrates a cut or open sided stringer as opposed to a closed or housed sided stringer and shows the inside stringer supported and unsupported. This home shows the use of a painted wood stairs combined with solid oak stair treads and oak hand railing with Grand oak newel posts.

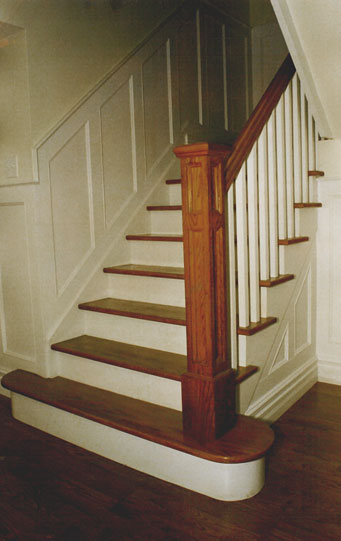

#3 oak railing with square painted pickets and Grand oak newel post - Finishing touches - stairs and railing images

This picture is of our #3 railing style in oak, with 1 1/4" square wood baluster in poplar. Oak newel Post is our Grand newel post design with 6" base, box detail and cap. The stair is an 1 1/4" poplar stringer with an 1 1/8" oak stair tread and a 1/2" pnt grd. faced riser. It is a cut one side (C1S) closed rise (CR) stair for site supported application.

Design note: The last oak tread at the bottom of the stair is called a bullnose tread, in this case because the stair extends beyond the wall, the tread is a double bullnose tread that has been notched to fit the wall. The stair stringer configuration is an open or Cut one side. Notice how the wall side of the stair has a different stringer then the open side of the stair. The step overhangs the stringer on the side opposite the wall. This stair combines oak and paint grade wood where the treads, newel post and railing are of a stain grade oak and the stringers, risers and balusters are of a paint grade material. Also, notice the wall below the open side of the stair, this is what is supporting that side of the stair, if that wall was not there, then that stringer would be of a thicker material to take up the support function the wall is providing.

- if your browser supports the feature run your mouse around the image and important details will become visible about the item

Oak stair picture id: Lep3copp

Wood railing: #3 handrail profile in oak
Wood balusters: Square 1 1/4" poplar or soft maple
Wood newel post: Square- Grand newel post with 6" base, cap and box detail
Oak / paint Stair: Straight C1S closed rise with double bullnose, site supported - 1 1/8" tread red oak, 1 1/4" stringer poplar
@ Finishing Touches - www.ftstairs.com

Back

#3 railing with square pickets and Grand newel post (2) - Finishing touches - stairs and railing images

This image is of the stairs leading to the basement for this home. The existing stairs have been reused and the new railing system continued from the main floor has been install.

Design note: This is a good example of the difference between a C1S stringer configured stair and an H2S stringer configured stair also showing a supported and unsupported inside stringer. On the image below, you will notice that the balusters sit on top of the stringer and that there is no support wall under the upper set of stairs in the picture which is the exact opposite of the picture above where the treads overhanging the inside stringer and it has been "cut" away to expose the tread edge and to allow the balusters to sit down on the tread.

- if your browser supports the feature run your mouse around the image and important details will become visible about the item

mage id: Lep3cop2
Railing: #3 in oak
Balusters: Square 1 1/4"
Posts: Square- Grand newel post with 6" base, cap and box detail
Stairs: Straight H2S closed rise , unsupported site application - 1 1/8" tread red oak, 1 3/4" stringer poplar
@ Finishing Touches - www.ftstairs.com

Back
